Wiring diagram front and rear power windows

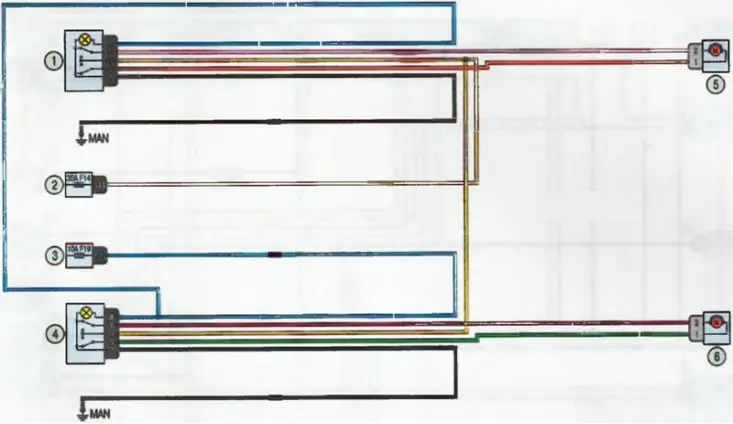

Scheme 18. Power windows of the front doors: 1 - power window switch of the right front door; 2.3 - fuse box in the cabin; 4 - power window switch of the left front door; 5 - power window motor of the right front door; 6 - power window motor of the left front door

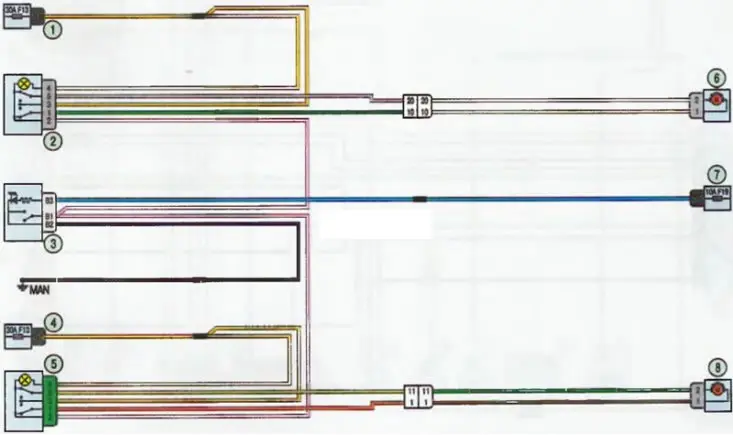

Scheme 19. Power windows of the rear doors: 14.7 - fuse box in the cabin; 2 - power window switch of the left rear door; 3 - rear door window lock switch; 5 - power window switch of the right rear door; 6 - the electric motor of the window lifter of the left rear door; 8 - power window motor of the right rear door
